@DATATEXT (Data Text Mode)

This macro sets the data text mode (i.e., values on risers, labels on risers, etc.). The nValue parameter identifies the type of data text to show.

SYNTAX:

@DATATEXT nValue

PARAMETERS:

nValue; Selects the data text to show:
0 = None
1 = Show Values
2 = Show Labels

When nValue=1, different data text values may be shown depending on the chart type (e.g., Absolute values in absolute charts. Cumulative values in stacked and percent charts). Add one of the following values to nValue to identify specific data text values to show.

4 (i.e., @DATATEXT 5) = Show Absolute values in stacked & percent charts
8 (i.e., @DATATEXT 9) = Show Total Values in a stacked chart
16 (i.e., @DATATEXT 17) = Show Z-Values in bubble charts
32 (i.e., @DATATEXT 33) = Show Riser values as a percentage
64 (i.e., @DATATEXT 65) = Show Y-Axis Values in Scatter & Bubble Charts

nValue is a bit field. So, multiple values can be added (OR'd) to show multiple data text values. Examples:

@DATATEXT 3 = Values (1) + Text (2)
@DATATEXT 80 = Y-Axis Value (64) + Z-Axis Value (16)
@DATATEXT 39 = Riser value as a percentage (32) + Absolute Value (4) + Text (2) + Value (1)
@DATATEXT 97 = Y-Axis Value (64) + Riser value as a percentage (32) + Value (1)

EXAMPLE: @DATATEXT.RPT

@DATATEXT 1

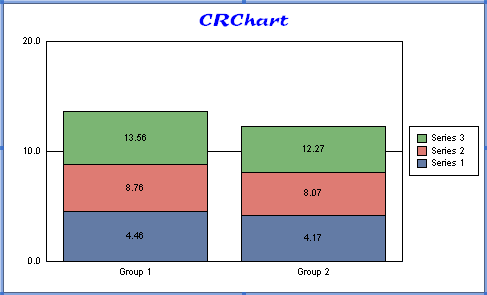

@GRAPHTYPE 15 @DATATEXT 1

@DATATEXT 2

@DATATEXT 3

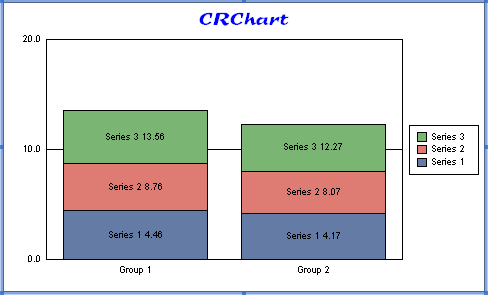

@GRAPHTYPE 15 @DATATEXT 3

@GRAPHTYPE 15 @DATATEXT 5

@GRAPHTYPE 15 @DATATEXT 7

@GRAPHTYPE 15 @DATATEXT 8

@GRAPHTYPE 15 @DATATEXT 9

@DATATEXT 12

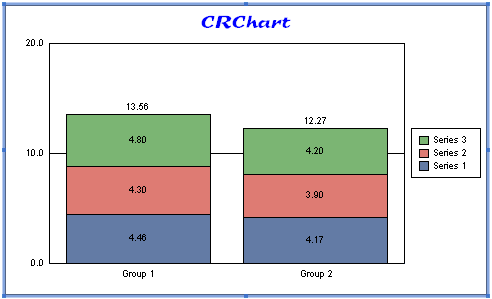

@DATATEXT 14

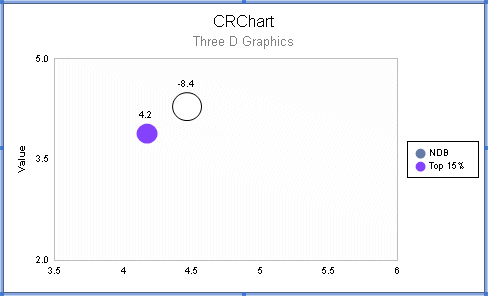

@GRAPHTYPE 60 @DATATEXT 16

@GRAPHTYPE 15 @DATATEXT 32

@GRAPHTYPE 60 @DATATEXT 64

PERSISTENT:

YES
