@DTP (Data Text Position)

This macros can be used to position data text for a specific series.

SYNTAX:

@DTP nSeries nLocation

PARAMETERS:

nSeries; -1...511 Series number (-1 = all series, 0 = Series 1, 1 = Series 2, etc.)

nlocation; 0...4 data text location
0 = Data Text is placed in CENTER of riser.
1 = Data Text is placed just OUTSIDE the MINIMUM of the riser (under bottom of bar or data marker).
2 = Data Text is placed just INSIDE the MINIMUM of a riser (inside bottom of bar or data marker).
3 = Data Text is placed INSIDE the MAXIMUM of a riser (for a bar, text goes just inside the bar from the top of the riser; for a data marker, just inside the "top" side of the marker).
4 = Data Text is placed just OUTSIDE the MAXIMUM of the riser (on top of bar or data marker).

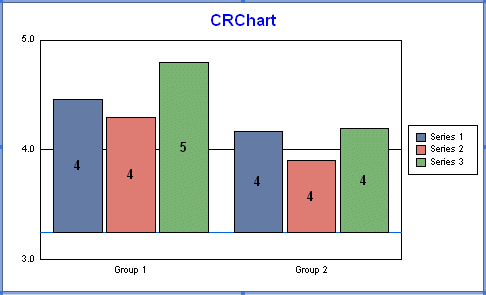

EXAMPLE: @DTP.RPT

@DTP 0

@DTP 1

@DTP 2

@DTP 3

@DTP 4

PERSISTENT:

NO
