@FORCE_FULL_BARS (Force Full Bars)

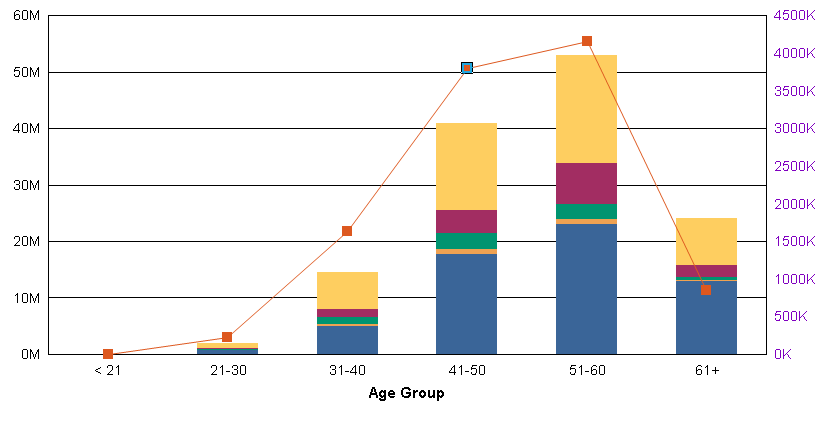

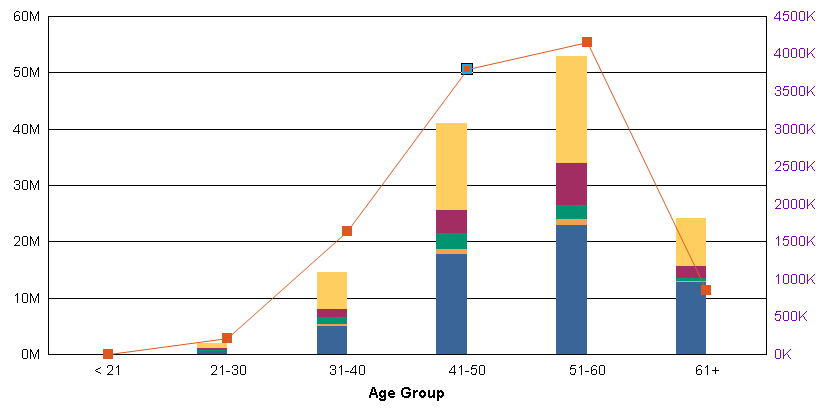

For dual-Y stacked charts, the charting engine draws two side-by-side stacks. When the right-side stack is emphasized into lines, bars for the remaining left-side stack are thin and not centered on their group label. This macro forces the left stack to draw risers that are the full-width of the group area and centered on the group label.

SYNTAX:

@FORCE_FULL_BARS bFull

PARAMETERS:

bFull; 0/1
0 = disable full-width bars
1 = enable full-width bars

EXAMPLE:

@FORCE_FULL_BARS 0

@FORCE_FULL_BARS 1

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 11 or Higher

NOTES:

A stack can be "emphasized into lines" with the @COMBO macro or by selecting Series Options / Appearance / Show Selected Series As / Line.
