@OFFSCALE_Y1 (Y1-Axis Offscale Values)

This macro can be used to specify how offscale values are charted on the Y1-axis.

SYNTAX:

@OFFSCALE_Y1 nOffScaleMode

PARAMETERS:

nOffScaleMode; 0...2.

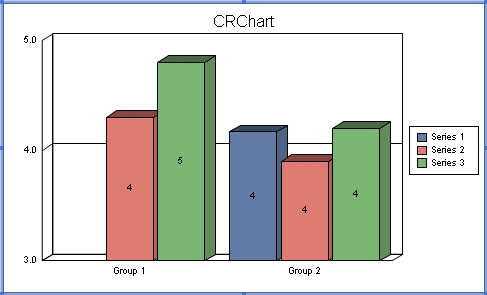

0=Do not show offscale values,

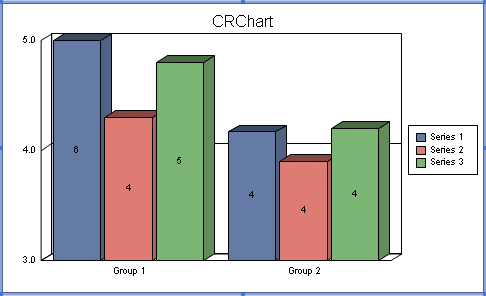

1=Graph offscale values at scale maximum,

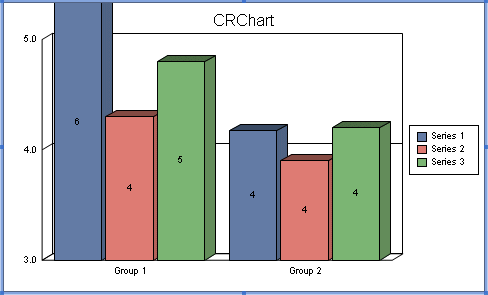

2=Clip offscale values against chart frame.

EXAMPLE: @OFFSCALE_Y1.RPT

@DP 0 0 5.5 @OFFSCALE_Y1 0

@OFFSCALE_Y1 1

@OFFSCALE_Y1 2

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 9 or Higher

NOTES:

In this release, @OFFSCALE_Y1 2 is only supported with 2.5D depth applied to the chart.
