@SMOOTH_LINE (Smooth Line)

This macro connects data points with a smooth line or straight line segments.

SYNTAX:

@SMOOTH_LINE nSeries bOnOff

PARAMETERS:

nSeries; -1...n (where: n = the total number of series in the chart). -1 = apply to all series, 0 = Series 1, 1 = Series 2, etc.

bOnOFF; 1 = connect data markers using a smooth line. 0 = connect data markers with straight-line segments (default).

EXAMPLE: @SMOOTH_LINE.RPT

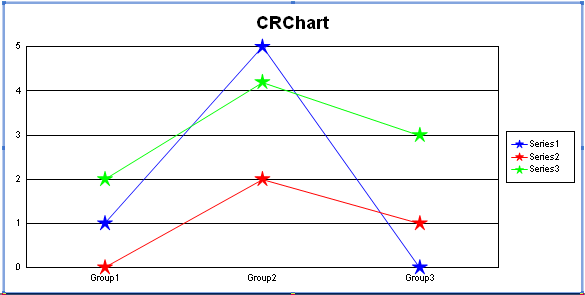

@SMOOTH_LINE -1 0

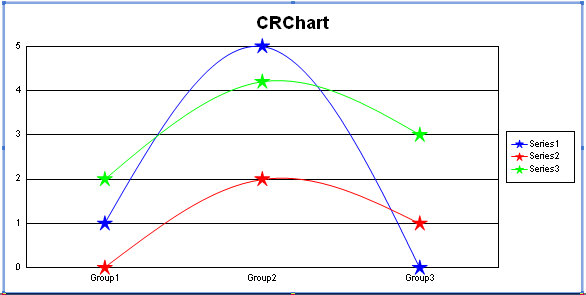

@SMOOTH_LINE -1 1

PERSISTENT:

YES

ALSO SEE::

@CURVED_LINES
