In 2D charts, this macro fills a portion of the chart frame with a color-filled circle and optional phrase. The circle and phrase are drawn in front of the chart risers. Set fStartX and fStopX to zero to select the lower left corner of the chart frame.
SYNTAX:
@USER_FILL_CIRCLE_ABOVE fStartX fStopX fStartY fStopY nRed nGreen nBlue szPhrase
PARAMETERS:
fStartX; 0.0...1.1 X-Axis start location
fStopX; 0.0...1.1 X-Axis stop location
fStartY; 0.0...1.1 Y-Axis start location
fStopY; 0.0...1.1 Y-Axis stop location
nRed; 0...255 defines the RED portion of the RGB color
nGreen; 0...255 defines the GREEN portion of the RGB color
nBlue; 0...255 defines the BLUE portion of the RGB color

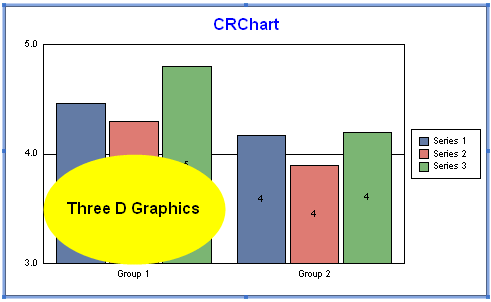

szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.EXAMPLE: @USER_FILL_CIRCLE_ABOVE.RPT
@USER_FILL_CIRCLE_ABOVE 0.0 0.5 0.0 0.5 255 255 0 Three D Graphics
PERSISTENT:
NO
REQUIREMENTS:
Crystal Reports 9 or Higher
NOTES:
- CRChart supports a maximum of 20 user-defined areas that are created with the following macros: @UF, @USER_CIRCLE, @USER_CIRCLE_ABOVE, @USER_FILL, @USER_FILL2, @USER_FILL_CIRCLE, @USER_FILL_CIRCLE_ABOVE, @USER_FILL_CIRCLE2, @USER_FILL_CIRCLE2_ABOVE, @USER_RECT, and @UW.
- @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
- This macro can only be used in a 2D chart where depth effect has not been applied with Chart Options/Appearance/Use Depth or Chart Expert/Type/Use depth effect.
