@YSZN2 (Y1-Axis Line with Label & Value above line)

This macro adds a user-defined line on the Y1-axis at value fValue with the label sZLabel. The value of fValue is appended to sZLabel.

SYNTAX:

@YSZN2 fValue nXAdjust nYAdjust sZLabel

PARAMETERS:

fValue; Value at which to add the user-defined line on the Y1-axis

nXAdjust; -16000...16000 adjusts the label closer to or further away from the line.

nYAdust; -16000...16000 adjusts the label closer to or further away from the line.

sZLabel; Label string to show next to the line at fValue. Add a space to the end of the label if you want a space to appear between the label and fValue. Add a tilde (~) character to the end of the string if you intend to define other macros in the same title field.

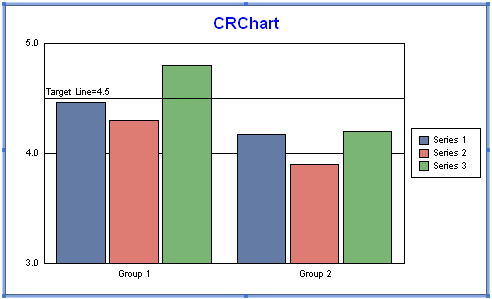

EXAMPLE: @YSZN2.RPT

@YSZN2 4.5 0 0 Target Line=

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 11 or Higher

NOTES:

CRChart supports a maximum of 20 user-defined lines. User-defined lines are drawn with: @CX, @CXY, @CY, @CY2, @X, @XG, @XSZ, @XSZL, @XSZN, @XSZNL, @XY, @XY_DP2, @Y, @YSZ, @YSZL, @YSZN, @YSZN2, & @YSZNL.

ALSO SEE:

@YSZ, @YSZL, @YSZN, @YSZNL
