@3DLINES (Draw Risers as Ribbons on 2.5D Line Charts)

In a line chart where 2.5D depth effect is applied, this macro can be used to force the risers to be drawn as ribbons.

SYNTAX:

@3DLINES bWant3DLines

PARAMETERS:

bWant3DLines; 0/1
0 = draw lines normally
1 = draw lines as ribbons

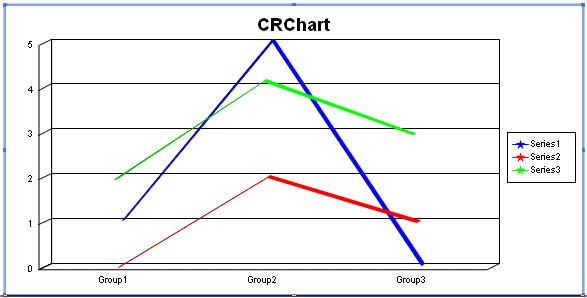

EXAMPLE: @3DLINES.RPT

@3DLINES 0

@3DLINES 1

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 11 or Higher
