@AREA_GRID (Area Grid)

This macro activates drawing of grid lines above the area fills in area charts. These gridlines are independent of Y-Axis or X/Group-Axis grid lines.

SYNTAX:

@AREA_GRID bShowGridelinesOnAreaFills

PARAMETERS:

bShowGridelinesOnAreaFills ; 0/1
0 = do not draw grid lines
1 = draw grid on area fills

EXAMPLE: @AREA_GRID.RPT

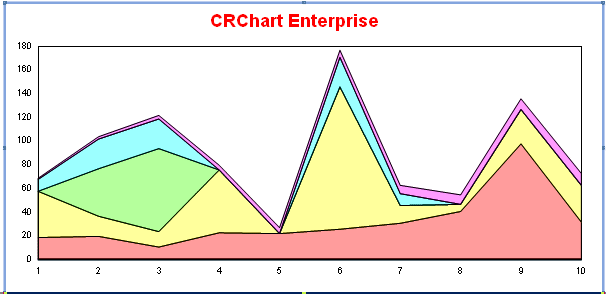

@AREA_GRID 0

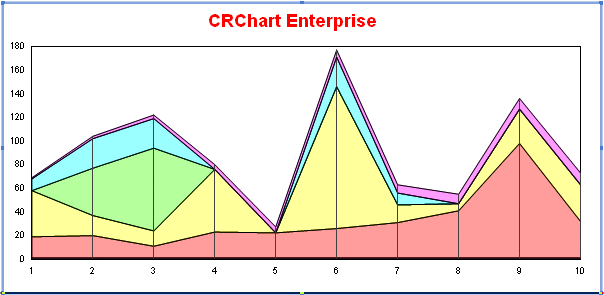

@AREA_GRID 1

PERSISTENT:

NO

REQUIREMENTS:

• Crystal Reports 11 or higher

•
