@HL (Highlight Riser/Marker)

This macro uniquely colors the marker identified by nSeries and nGroup with the color identified by nRed, nGreen, nBlue.

SYNTAX:

@HL nSeries nGroup nRed nGreen nBlue

PARAMETERS:

nSeries; -1...1024 Series Number (-1=all series, 0=Series 1, 1=Series 2, etc.)

nGroup; -1...1024 Group Number (-1=all groups, 0=Group 1, 1=Group 2, etc.)

nRed, nGreen, nBlue: 0...255 specifies the RGB value to be applied to the riser/marker at nSeries and nGroup.

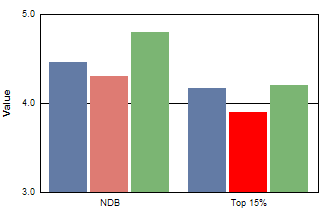

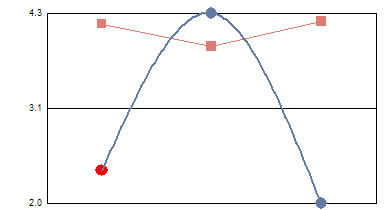

EXAMPLE: @HL.RPT

@HL 0 0 255 0 0

@HL 1 1 255 0 0

PERSISTENT:

YES
