@FONTANGLE (Font Angle)

This macro can be used to change the rotation angle of a text object in a chart.

SYNTAX:

@FONTANGLE nObject nAngle

PARAMETERS:

nObject; 1...11 selects one of the following chart objects:
1 = Title
2 = Subtitle
3 = X1-Axis Title
4 = Y1-Axis Title
5 = Y2-Axis Title
6 = Footnote
7 = Data Text
8 = O1-Axis Labels or X1-Axis Labels depending on the chart type
9 = Y1-Axis Labels
10 = Y2-Axis Labels
11 = Legend Text

nAngle; 0...6 applies one of the following angles to nObject:
0 = Normal, Horizontal Characters
1 = Vertical/Hotel-Mode Characters
2 = Rotate Characters 90 Degrees
3 = Rotate Characters 180 Degrees
4 = Rotate Characters 270 Degrees
5 = Rotate Characters 45 Degrees
6 = Rotate Characters 315 Degrees

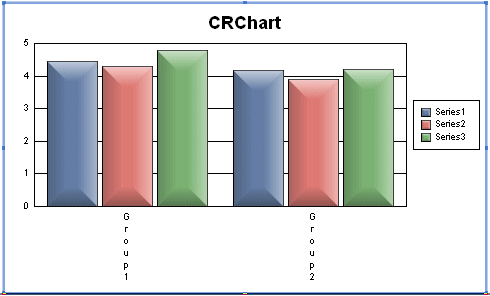

EXAMPLE: @FONTANGLE.RPT

@FONTANGLE 8 1

PERSISTENT:

YES

REQUIREMENTS:

Crystal Reports 9 or Higher

ALSO SEE:

@FONTNAME, @FONTSIZE
