@PVA (Planned Vs. Actual)

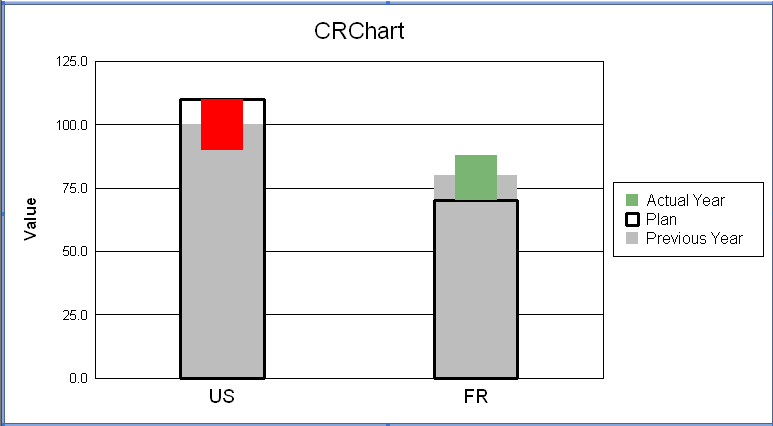

In a stacked bar chart with more than two series, this macro creates a special Plan vs. Actual mode chart. The series 2 risers draw half the width of series 1 risers. If the series 2 value is below the series 1 value, the riser is colored red and is drawn down from the plan value.

SYNTAX:

@PVA bPlanActual

PARAMETERS:

bPlanActual; 0 = Disable / 1 = Enable Plan vs. Actual Mode

EXAMPLE:

@DP 0 0 100 @DP 0 1 80 @DP 1 0 110 @DP 1 1 70 @DP 2 0 90 @DP 2 1 88 @FORCE_ABSOLUTE 0 1 @PVA 1

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 11 or higher
