When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the thickness of the layer that is used for Markers and Risers. It is specified in OpenGL Units. |
|
Type: |
REAL64 |
|
Valid Range: |
0 to 10.0 |
|
Default: |
0.25 |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 DataDepth=1.5;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DDEPTH_DATA, (void FAR *) &DataDepth); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DDEPTH_FRAME, A3D_ADV_2DDEPTH_LEGEND, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the thickness of the layer that is used for the chart frame. It is specified in OpenGL Units. |
|
Type: |
REAL64 |
|
Valid Range: |
0...10.0 |
|
Default: |
0.25 |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 DepthFrame=6.0;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DDEPTH_FRAME, (void FAR *) &DepthFrame); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DDEPTH_DATA, A3D_ADV_2DDEPTH_LEGEND, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the thickness of the legend box (and markers). It is specified in OpenGL Units. Note that this attribute controls BOTH the thickness of the legend box itself as well as the legend markers. |
|
Type: |
REAL64 |
|
Valid Range: |
0.1...6.0 |
|
Default: |
0.2 |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 LegendDepth=1.0;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DDEPTH_LEGEND, (void FAR *) &LegendDepth); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DDEPTH_DATA, A3D_ADV_2DDEPTH_FRAME, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, the value assigned to this attribute will show/hide the chart foot. In order for this foot (or ledge) to appear properly, the minimum value of the Y1 and/or Y2 scale should be excluded. Otherwise, the foot will draw OVER the minimum scale value. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Display the foot. The minimum scale value on the Y1 and/or Y2 axis will not display. |
| |
FALSE= |
Do not draw the foot; minimum scale values will display properly. |
|
Default: |
FALSE |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DFRAMEMARGIN, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, the value assigned to this attribute will show/hide an extra margin around the chart frame. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Draw the chart with the extra margin. (default setting). |
| |
FALSE= |
Do not draw the extra margin; draw the chart frame as if it were a normal 2D chart. |
|
Default: |
TRUE |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DFRAMEMARGIN, (void FAR *) &bON); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DFRAMEFOOT, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the distance of the viewer from the chart. Larger numbers send the chart further into the distance making it appear smaller. Smaller values bring the chart closer making the chart appear larger. Set a smaller size to increase the size of the chart. Use a larger value to decrease the size of the chart. Very small values will zoom the chart so close that it will clip the edges of the window (e.g., values smaller than 2.0). |
|
Type: |
REAL64 |
|
Valid Range: |
0.1...20.0 |
|
Default: |
6.0 |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 rDist=10.0;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DVIEWER_DIST, (void FAR *) &rDist); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DVIEWER_X, A3D_ADV_2DVIEWER_Y, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the X-angle of the chart. A value of zero produces a flat chart. A negative value will rotate the chart to the left (if viewed from the front). A positive value will rotate it to the right. |
|
Type: |
REAL64 |
|
Valid Range: |
-10.0...10.0 |
|
Default: |
Zero |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 rViewX=-4.0;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DVIEWER_X, (void FAR *) &rViewX); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DVIEWER_DIST, A3D_ADV_2DVIEWER_Y, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the Y-angle of the chart. A value of zero produces a flat chart. A negative value will rotate the chart up (if viewed from the front). A positive value will rotate it down. |
|
Type: |
REAL64 |
|
Valid Range: |
-10.0...10.0 |
|
Default: |
Zero |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 rViewY=-6.0;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_2DVIEWER_Y, (void FAR *) &rViewY); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_2DVIEWER_DIST, A3D_ADV_2DVIEWER_X, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE, the value assigned to this attribute enables/disables anti-alias drawing. When enabled, this drawing mode will smooth lines and font edges. The quality of anti-alias drawing depends on the hardware/software platform. This feature vastly improves the appearance of a chart if the platform has 3D-hardware acceleration. However, it can slow the drawing of charts on machines without hardware acceleration. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Use anti-alias drawing |
| |
FALSE= |
Draw the chart normally |
|
Default: |
TRUE |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_ANTIALIAS, (void FAR *) &bON); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the amount of radiant color from the background material (default material). |
|
Type: |
REAL64 |
|
Valid Range: |
0.0...3.0 |
|
Default: |
.33 |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
REAL64 rGrad=1.5;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_BGRADIOSITY, (void FAR *) &rGrad); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_DEFAULT_MATERIAL, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, these attributes enable/disable and define three lights (1, 2, 3) to shine on a chart. Each element of the structure controls a specific segment of light. |
|
Type: |
typedef struct {
BOOLEAN16 bLightOn;
REAL64 fRed;
REAL64 fGreen;
REAL64 fBlue;
REAL64 fDiffuseAmt;
REAL64 fSpecularAmt;
REAL64 fPositionX;
REAL64 fPositionY;
REAL64 fPositionZ;
REAL64 fAttenuation;
INT32 nFlags;
} Light3DStruct, FAR * Light3DPtr; |
|
Valid Range: |
See the Light3DStruct in Appendix A for information about how to fill in the fields in this data structure to enable/disable and define Light 1. |
|
Default: |
None |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_TITLELIGHT, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute defines the structure for the material of the chart. There are two materials: one for the entire chart (defined by this attribute) and one for the floating labels (defined by the A3D_ADV_LABEL_MATERIAL attribute). |
|
Type: |
typedef struct {
REAL64 fDiffRed;
REAL64 fDiffGreen;
REAL64 fDiffBlue;
REAL64 fSpecRed;
REAL64 fSpecGreen;
REAL64 fSpecBlue;
REAL64 fShininess;
REAL64 fTextureTint;
REAL64 fTextureScale;
INT32 nFlags;
} Material3DStruct, FAR * Material3DPtr; |
|
Valid Range: |
See the Material3DStruct in Appendix A for information about how to fill in the fields in this data structure to define the default material. |
|
Default: |
None |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_BGRADIOSITY, A3D_ADV_LABEL_MATERIAL, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
This attribute enables/disables Advanced 3D rendering for the entire chart. When TRUE, all charts are processed through the OpenGL port and rendered in advanced form. When FALSE, all charts are drawn using standard Windows graphics methods. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Advanced 3D drawing is used. All charts are drawn using OpenGL |
| |
FALSE= |
Charts are drawn using standard Windows graphics methods |
|
Default: |
FALSE |
|
Example: |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bON); |
| |
|
| |
BOOLEAN16 bOFF=FALSE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DOADV_CHART, (void FAR *) &bOFF); |
| |
|
|
Notes: |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_DOADV_TITLES |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
|
|
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute enables/disables advanced 3D rendering for the fonts of the Title, Subtitle, and Footnote. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Convert Title, Subtitle and Footnote fonts to 3D fonts using the OpenGL drawing routines. |
| |
FALSE= |
Use normal Windows fonts for the Title, Subtitle, and Footnote. |
|
Default: |
FALSE |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
This attribute enables/disables the drop shadow that is shown around a pie chart when advanced drawing is used. |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE (Draw Drop Shadow ) / FALSE (Do Not draw drop shadow) |
|
Default: |
TRUE |
| |
BOOLEAN16 bON=TRUE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DROP_SHADOW, (void FAR *) &bON); |
| |
|
| |
BOOLEAN16 bOFF=FALSE;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_DROP_SHADOW, (void FAR *) &bOFF); |
| |
|
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
Pie Charts ONLY |
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute enables or disables the substitution of hi-resolution OpenGL models for 3D risers. The current risers that may be substituted are as follows: |
| |
Graph Type: |
OpenGL Substitution: |
| |
Floating Spheres |
TRUE spheres |
| |
Floating Cubes |
Rounded-edge cubes |
| |
3D Bars |
Rounded-edge bars |
| |
Pyramids |
Smoothed cones |
| |
Octagons |
Cylinders with chamfered tops |
|
Type: |
BOOLEAN16 |
|
Valid Range: |
TRUE/FALSE |
| |
TRUE= |
Substitute the new models for the "standard" risers. |
| |
FALSE= |
Use the "old style" risers for all charts, even if drawing in OpenGL. |
|
Default: |
FALSE |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_LOFT_SHAPE, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute sets up the structure for the material of the floating labels. Currently, there are two materials, one for the entire chart and one for the floating labels (title, subtitle, and footnote). |
|
Type: |
typedef struct {
REAL64 fDiffRed;
REAL64 fDiffGreen;
REAL64 fDiffBlue;
REAL64 fSpecRed;
REAL64 fSpecGreen;
REAL64 fSpecBlue;
REAL64 fShininess;
REAL64 fTextureTint;
REAL64 fTextureScale;
INT32 nFlags;
} Material3DStruct, FAR * Material3DPtr; |
|
Valid Range: |
See the Material3DStruct in Appendix A for information about how to fill in the fields in this data structure to define the label material. |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ ADV_DEFAULT_MATERIAL, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute controls the shape of 2D3D-risers. If this attribute is set to minus one, the marker shape for each series is used. A value in the range zero to 48 selects the marker shape that is used to loft the risers. |
|
Type: |
INT64 |
|
Valid Range: |
-1...48 -1 = use the marker shape for each series. See A2D_MARKER_SHAPE for a description of these values. |
|
Default: |
-1 (Use marker shape for each series) |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_LOFT_TWIST, A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE and the graph type is set to one of the pie charts, this attribute controls the pie edge type. |
|
Type: |
INT16 |
|
Valid Range: |
0...5 |
| |
0= |
Flat |
| |
1= |
Smoothed |
| |
2= |
Rounded |
| |
3= |
V-Shaped |
| |
4= |

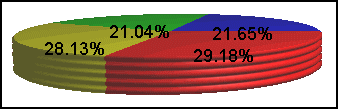

Corrugated |
| |
5= |

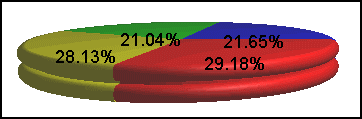

Oil Drum |
|
Default: |
0 (Flat) |
|
Example: |
INT16 Corrugated=4;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_PIE_EDGETYPE, (void FAR *) &Corrugated); |
| |
|
| |
INT16 OilDrum=5;
SetGraphAttr(gpGraph,GRAPH_LAYER,
NULL_OBJECTID,NULL_SERIESID, NULL_GROUPID,
A3D_ADV_PIE_EDGETYPE, (void FAR *) &OilDrum); |
| |
|
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
Pie ONLY |
| |
|
| |
When the A3D_ADV_DOADV_CHART attribute is set to TRUE to enable advanced drawing, this attribute enables/disables and defines a light to shine on the chart title. Each element of the structure controls a specific segment of light. |
|
Type: |
typedef struct {
BOOLEAN16 bLightOn;
REAL64 fRed;
REAL64 fGreen;
REAL64 fBlue;
REAL64 fDiffuseAmt;
REAL64 fSpecularAmt;
REAL64 fPositionX;
REAL64 fPositionY;
REAL64 fPositionZ;
REAL64 fAttenuation;
INT32 nFlags;
} Light3DStruct, FAR * Light3DPtr; |
|
Valid Range: |
See the Light3DStruct in Appendix A for information about how to fill in the fields in this data structure to enable/disable and define title light. |
|
Notes: |
1. |
If A3D_ADV_DOADV_CHART is FALSE, this attribute is not used. |
| |
2. |
See Advanced 3D Rendering in the PGSDK Programmer's Manual for additional information about using the advanced 3D (A3D_ADV...) attributes. |
|
Also See: |
A3D_ADV_DOADV_CHART |
|
Usage |
ObjectID |
SeriesID |
GroupID |
GraphTypes |
|
Requirements: |
No |
No |
No |
All |
