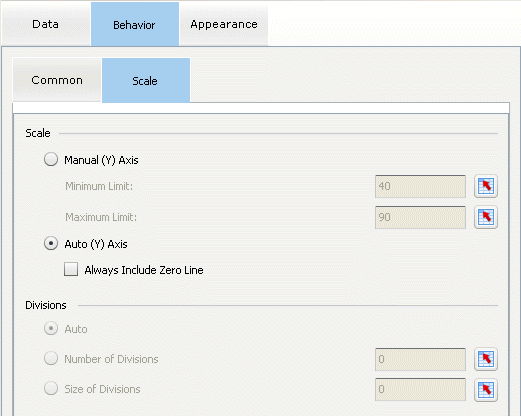

This section of the properties panel defines Y-Axis scaling:
In all of these fields, you can enter information in the associated field or click the data button to choose data from one or more cells in the spreadsheet.
Manual (Y) Axis: Click this radio button and enter minimum and maximum values to draw on the Y-Axis.
Auto (Y) Axis: Click this radio button to select automatic non-zero scaling on the Y-Axis. The component will automatically calculate and draw the values needed on the Y-Axis based on the range of values in the data set. Use the Always Include Zero Line field if you want automatic scaling to always include zero.
Always Include Zero Line: When Auto (Y) Axis scaling is enabled, click this check box to force automatic scaling to begin at zero. Automatic scaling will only include zero if the range of values in the data set require it. If auto-scaling does not include zero, use this field to force zero-based auto-scaling.

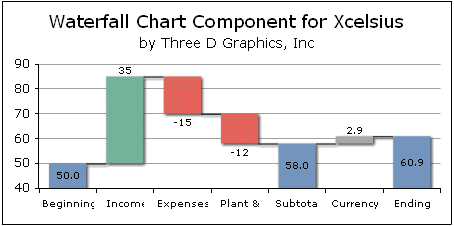

Example:

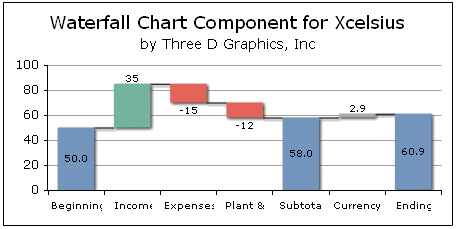

Example:
Divisions: If Manual (Y) Axis is enabled, these fields can be used to specify the number of divisions on the Y-Axis.
Auto: Click the Auto button to automatically calculate the number of divisions on the Y-Axis based on the minimum/maximum values.
Number of Divisions: Click the Number of Divisions button and enter the number of divisions you want to appear on the Y-Axis.
Size of Divisions: Click this button and enter a value to define the increment between each value on the Y-Axis.
