@BEVEL (Bevel Chart Object)

This macro can be used to apply a bevel effect to a chart object.

SYNTAX:

@BEVEL nObject nBevelType

PARAMETERS:

nObject; 1...3. 1=Chart Background, 2=Chart Frame. 3=Risers

nBevelType; 0...3. 0=None, 1=Smooth Edge, 2=Chisel Edge, 3=Donut. Bevel types 1 and 2 can only be applied to rectangle and polygons objects. Bevel type 3 can only be applied to ellipses and slices.

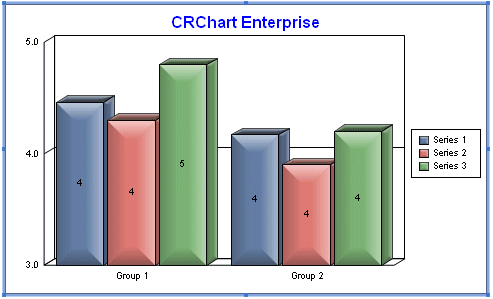

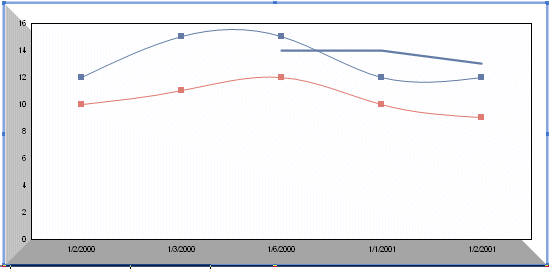

EXAMPLE: @BEVEL_PIE.RPT, @BEVEL_RISERS.RPT

@BEVEL 1 1

@BEVEL 3 1

@BEVEL 3 3

PERSISTENT:

YES (You can use nBevelType zero (0) to remove the bevel)

REQUIREMENTS:

Crystal Reports 9 or Higher & CRChart Enterprise

NOTES:

This macro will automatically enable the high-quality drawing engine (@HQ 1).
