@HQ (Enable/Disable High Quality Rendering)

This macro enables/disables high-quality rendering. It is only available in CRChart Plus. High-Quality rendering will apply anti-aliasing to all chart elements in Crystal Reports 9, 10 and 11 and greatly improve the overall appearance of these charts.

SYNTAX:

@HQ bEnable

PARAMETERS:

bEnable; 0=Disable High-Quality Rendering (i.e., use the standard drawing engine), 1=Enable High-Quality Rendering

EXAMPLE:

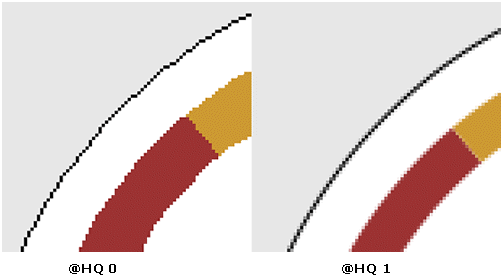

Close-Up View of High-Quality Rendering

PERSISTENT:

NO

REQUIREMENTS:

• Crystal Reports 9 or higher

•

NOTES:

• @HQ is only useful in Crystal Reports 9, 10 and 11. Crystal Reports 11.5, Release 2 (or higher) applies anti-aliasing to most chart elements.

• This macro will automatically be enabled (@HQ 1) when another macro requires high-quality drawing. The following macros require high-quality rendering:

  @BEVEL
  @CURVED_LINES
  @GAUGE_BORDER_STYLE
  @GAUGE_BORDER_THICKNESS
  @GAUGE_MULTIPLE_NEEDLES
  @GAUGE_NEEDLE_STYLE
  @GAUGE_STYLE
