@GAUGE_THRESHOLD (Gauge Band Threshold)

This macro changes the threshold value between the color bands in a gauge chart.

SYNTAX:

@GAUGE_THRESHOLD nBand fThreshold

PARAMETERS:

nBand; 0...4 selects the color band

fThreshold; selects the threshold between color band nBand and nBand+1

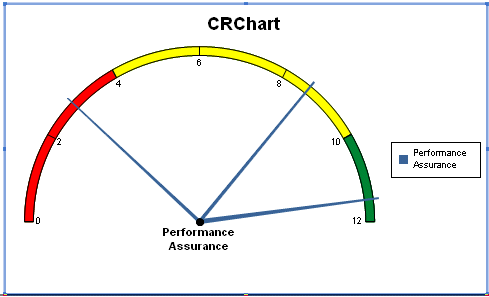

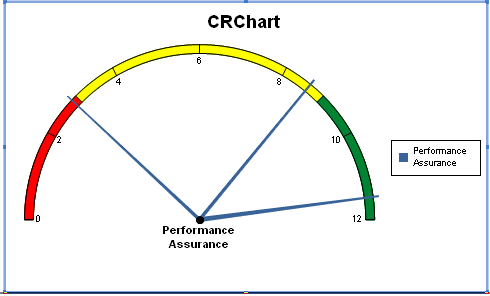

EXAMPLE: @GAUGE_THRESHOLD.RPT

@GAUGE_THRESHOLD 0 3 @GAUGE_THRESHOLD 1 9

@GAUGE_THRESHOLD 0 4 @GAUGE_THRESHOLD 1 10

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 10 or Higher
