@GCOLOR (Color Chart Object)

This macro can be used to change the color of major objects in a chart.

SYNTAX:

@GCOLOR nObject nRed nGreen nBlue

PARAMETERS:

nObject; 0...14 selects one of the following chart objects:
0 = Chart Frame
1 = Legend Frame
2 = Title
3 = Subtitle
4 = Footnote
5 = Y1 Axis Title
6 = Y2 Axis Title
7 = X Axis Title
8 = Y1 Axis Labels
9 = Y2 Axis Labels
10 = X Axis Labels
11 = Series Labels on Legend
12 = Y1 Major Gridlines
13 = Y2 Major Gridlines
14 = X1 or O1 Major Gridlines

nRed: 0...255 defines the Red portion of RGB color selection.

nGreen: 0...255 defines the Green portion of RGB color selection.

nBlue: 0...255 defines the Blue portion of RGB color selection.

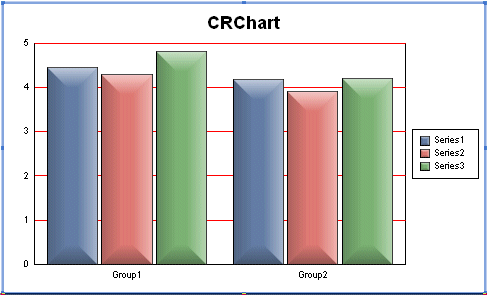

EXAMPLE: @GCOLOR.RPT

@GCOLOR 12 255 0 0

PERSISTENT:

YES

ALSO SEE:

@MCOLOR (Marker/Riser Color)
