@USER_CIRCLE (User-Defined Outlined Circle)

In 2D charts, this macro fills a portion of the chart frame with an outlined circle. Set fStartX and fStopX to zero to select the lower left corner of the chart frame.

SYNTAX:

@USER_CIRCLE fStartX fStopX fStartY fStopY nRed nGreen nBlue nLineStyle nThickness szPhrase

PARAMETERS:

fStartX; 0.0...1.1 X-Axis start location

fStopX; 0.0...1.1 X-Axis stop location

fStartY; 0.0...1.1 Y-Axis start location

fStopY; 0.0...1.1 Y-Axis stop location

nRed; 0...255 defines the RED portion of the RGB color

nGreen; 0...255 defines the GREEN portion of the RGB color

nBlue; 0...255 defines the BLUE portion of the RGB color

nLineStyle; 0...15 selects the outline style:



nThickness; 0...1000 selects the thickness of the outline.

szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

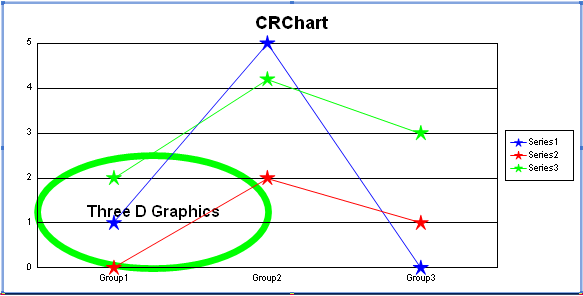

EXAMPLE: @USER_CIRCLE.RPT

@USER_CIRCLE 0.0 0.5 0.0 0.5 0 255 0 0 1000 Three D Graphics

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 9 or Higher

NOTES:

• CRChart supports a maximum of 20 user-defined areas that are created with the following macros: @UF, @USER_CIRCLE, @USER_CIRCLE_ABOVE, @USER_FILL, @USER_FILL2, @USER_FILL_CIRCLE, @USER_FILL_CIRCLE_ABOVE, @USER_FILL_CIRCLE2, @USER_FILL_CIRCLE2_ABOVE, @USER_RECT, and @UW.

• @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.

• This macro can only be used in a 2D chart where depth effect has not been applied with Chart Options/Appearance/Use Depth or Chart Expert/Type/Use depth effect.
