@XG (X-Axis Line at Group)

This macro is like the @X macro except it draws a line at a specified group. It allows you place the line more accurately (using groupID) on Bar/Line/Area/Box Plots. The line is drawn horizontally or vertically depending on the chart orientation.

SYNTAX:

@XG groupID

PARAMETERS:

groupID; Group at which to add the user-defined line on the X-axis

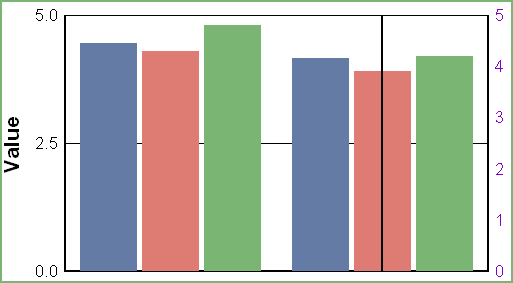

EXAMPLE:

@XG 1

PERSISTENT:

NO

REQUIREMENTS:

Crystal Reports 9 or Higher

NOTES:

CRChart supports a maximum of 20 user-defined lines. User-defined lines are drawn with: @CX, @CXY, @CY, @CY2, @X, @XG, @XSZ, @XSZL, @XSZN, @XSZNL, @XY, @XY_DP2, @Y, @YSZ, @YSZL, @YSZN, @YSZN2, & @YSZNL.
