In 2D charts, this macro fills a portion of the chart frame with an outlined circle that is drawn in front of chart risers. Set fStartX and fStopX to zero to select the lower left corner of the chart frame.
@USER_CIRCLE_ABOVE fStartX fStopX fStartY fStopY nRed nGreen nBlue nLineStyle nThickness szPhrase
fStartX; 0.0...1.1 X-Axis start location
fStopX; 0.0...1.1 X-Axis stop location
fStartY; 0.0...1.1 Y-Axis start location
fStopY; 0.0...1.1 Y-Axis stop location
nRed; 0...255 defines the RED portion of the RGB color
nGreen; 0...255 defines the GREEN portion of the RGB color
nBlue; 0...255 defines the BLUE portion of the RGB color
nLineStyle; 0...15 selects the outline style:
nThickness; 0...1000 selects the thickness of the outline.
szPhrase; Optional phrase. Add a tilde character (~) to this string if you intend to define another macro in the same title field.

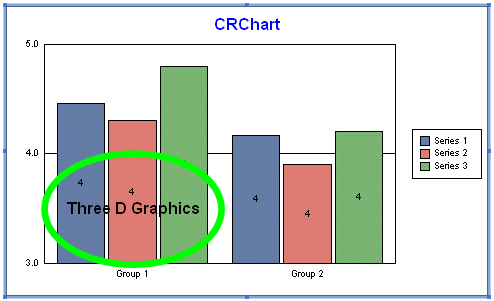

@USER_CIRCLE_ABOVE 0.0 0.5 0.0 0.5 0 255 0 0 1000 Three D Graphics
Crystal Reports 9 or Higher
- CRChart supports a maximum of 20 user-defined areas that are created with the following macros: @UF, @USER_CIRCLE, @USER_CIRCLE_ABOVE, @USER_FILL, @USER_FILL2, @USER_FILL_CIRCLE, @USER_FILL_CIRCLE_ABOVE, @USER_FILL_CIRCLE2, @USER_FILL_CIRCLE2_ABOVE, @USER_RECT, and @UW.
- @UF, @USER_CIRCLE..., @USER_FILL..., and @USER_RECT macros are independent of the X or Y axis values/scales.
- This macro can only be used in a 2D chart where depth effect has not been applied with Chart Options/Appearance/Use Depth or Chart Expert/Type/Use depth effect.
